MACHINE DESCRIPTION:

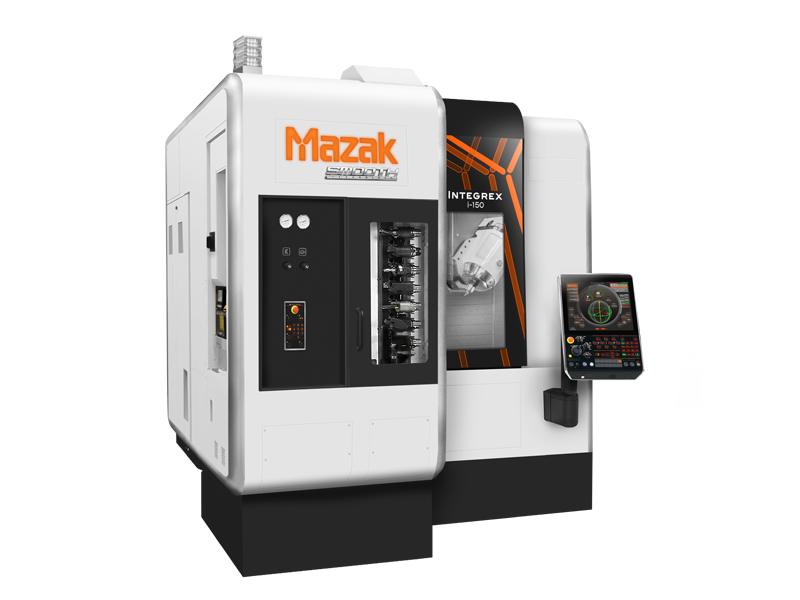

INTEGREX i-150 advanced Multi-Tasking machine delivers maximum versatility, high precision and throughput for smaller complex parts. The machine combines the capabilities of a high-powered turning center and full-function machining center to produce parts in single setups. A programmable, workpiece handling device allows milling operations to the back face. This machine configuration works to minimize fixtures, tools, handling and non-cut time.
Additionally, the machine brings dramatic reductions in lead-time and improves part accuracy through the elimination of multiple setups. With full 5-axis machining capability, the machine easily processes fully prismatic parts from solid or castings (chucked or bar fed), round parts, or highly contoured parts.
MACHINE CHARACTERISTICS:
- Milling spindle travel: -30 ~ 210 degrees (.0001 degree min index angle)
- Optional 20k RPM (7.5 HP) milling spindle available
- Full C-axis contouring (.0001 degree minimum index)
- Available spindle connections ( KM63/ CAPTO C6 / HSK A63 )
- 36-tool ATC standard ( HSK A63 ) – 72 tool option available
- Programmable workpiece handling device (standard) – tailstock attachment optional
機床參數
| Specification | 中心距 - | |
|---|---|---|
| 加工能力 | 最大回轉直徑 | 400 mm / 15.75 in |
| 最大加工直徑 | 400 mm / 15.750 in | |
| 最大棒材加工能力 (受卡盤影響) | 65 mm / 2.6 in | |
| 最大加工長度 | 385 mm / 15.160 in | |
| 主軸 | 卡盤尺寸 | 6 in |
| 最大轉速 | 5000 rpm | |
| 電機功率 (30 分鐘額定) | 11 kw / 15.0 hp | |
| 銑削主軸 | B軸行程 | 200° |
| 刀庫容量 | 36 | |
| 最大轉速 | 12000 rpm | |
| 電機功率 (20 ED Rating) | 8 kw / 10 hp | |
| 進給軸 | 行程(X軸) | 370 mm / 14.57 in |
| 行程(Y軸) | 200 mm / 7.87 in | |
| 行程(Z軸) | 435 mm / 17.13 in | |
| 行程(W軸) | 300 mm / 11.81 in | |
